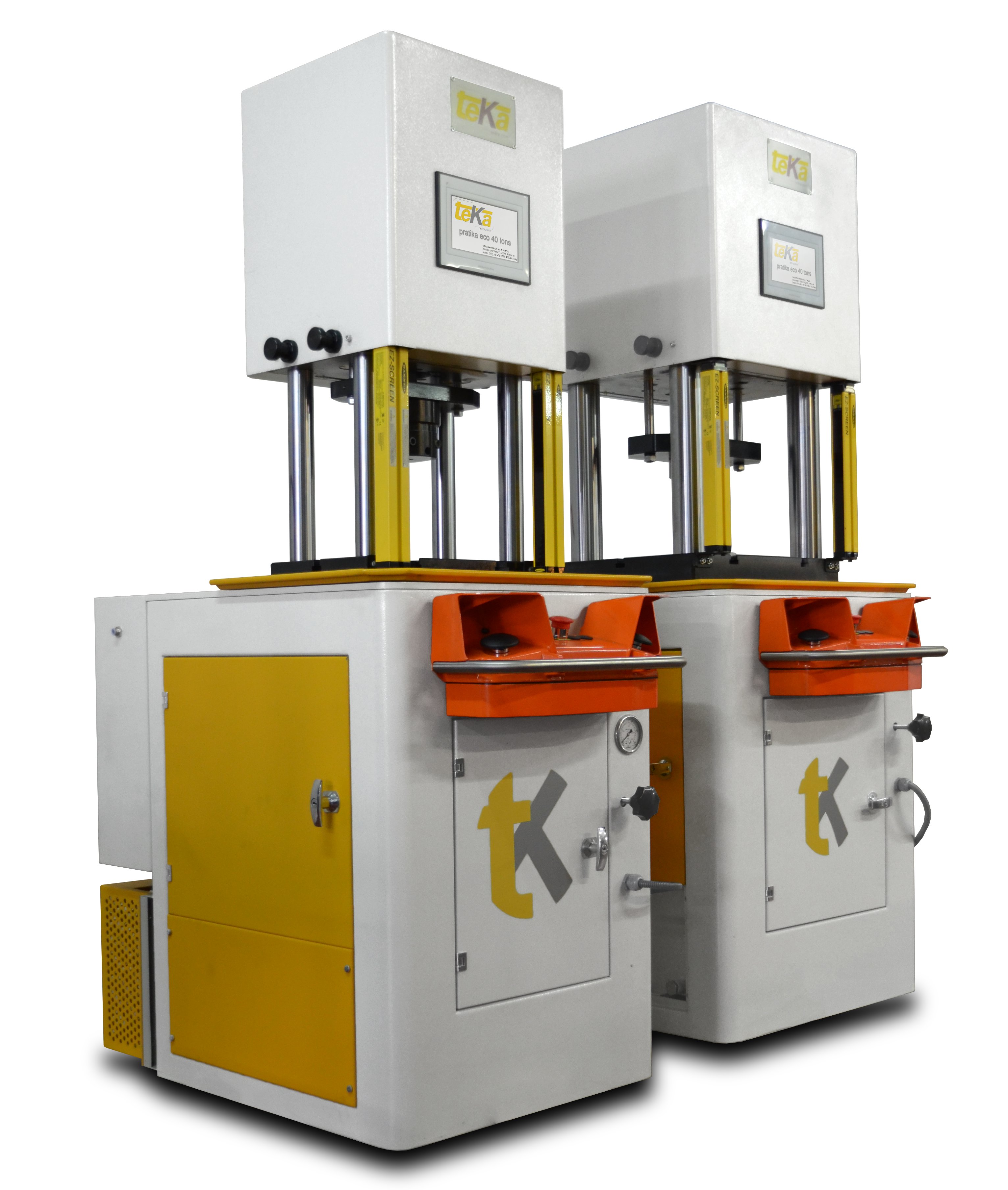

Pratika hydraulic press ECO series





Pratika

Hydraulic press ECO series

Pratika ECO series is a new 2014 Teka press series. The presses from 5 tons to 150 tons are controlled by PLC and represent the best combination of price, versatility and ease of use that you can find on the market.

A series of compact, fast and reliable machines perfect for moulding needs in the jewellery industry.

Prices start from € 11,000.

Technical features:

Pratika ECO 5 Ton

  • Cylinder bore: 80 mm
  • Max working pressure: 5309 Kg
  • 4-Column structure
  • Max Pressure: 140 Bar
  • Motor nominal power: 3 kW
  • Voltage: 400+N
  • Max closing speed: 50mm/s
  • Noise Level Lp at work: < 80 dB
  • Work Area: 280x135h180 mm
  • Dimensions: 820x1150x1800 mm
  • Net Weight: 550 Kg
  • Oil tank capacity: 80 Lt

Pratika ECO 20 Ton

  • Cylinder bore: 130 mm
  • Max working pressure: 21237 Kg
  • 4-Column structure
  • Max Pressure: 160 Bar
  • Motor nominal power: 4 kW
  • Voltage: 400+N
  • Max closing speed: 60mm/s
  • Min closing speed: 20mm/s
  • Noise Level Lp at work: < 80 dB
  • Work Area: 280x130h200 mm
  • Dimensions: 820x1300x1830 mm
  • Net Weight: 600 Kg
  • Oil tank capacity: 100 Lt

Pratika ECO 40 Ton

  • Cylinder bore: 160 mm
  • Max working pressure: 40715 Kg
  • 4-Column structure
  • Max Pressure: 50/200 Bar
  • Motor nominal power: 5.5 kW
  • Voltage: 400+N
  • Max closing speed: 33,8mm/s
  • Noise Level Lp at work: < 80 dB
  • Work Area mm 330x220h240 mm
  • Dimensions: 830x1565x1940 mm
  • Net Weight: 1060 Kg
  • Oil tank capacity: 120 Lt

Pratika ECO 60 Ton

  • Cylinder bore: 200 mm
  • Max working pressure: 58119 Kg
  • 4-Column structure
  • Max Pressure: 50/200 Bar
  • Motor nominal power: 9 kW
  • Voltage: 400+N
  • Max closing speed: 40,44 mm/s
  • Noise Level Lp at work: < 80 dB
  • Work Area: 330x345h200 mm
  • Dimensions: 1020x1300x1900 mm
  • Net Weight: 1200 Kg
  • Oil tank capacity: 200 Lt

Pratika ECO 150 Ton

  • Cylinder bore: 320 mm
  • Max working pressure: 155826 Kg
  • 4-Column structure
  • Max Pressure: 50/200 Bar
  • Motor nominal power: 15kW
  • Voltage: 400+N
  • Max closing speed: 17/5 mm/s
  • Noise Level Lp at work :< 80 dB
  • Work Area: 330x345h200 mm
  • Dimensions: 1200x1450x2000 mm
  • Net Weight: 1500 Kg
  • Oil tank capacity: 400 Lt



Contact Us
  • CE Certification
  •  PLC control, color touch screen with dedicated software
  • 500 memories available for processing parameters
  • Mould placement function
  • Works with pedal, buttons or in automatic mode
